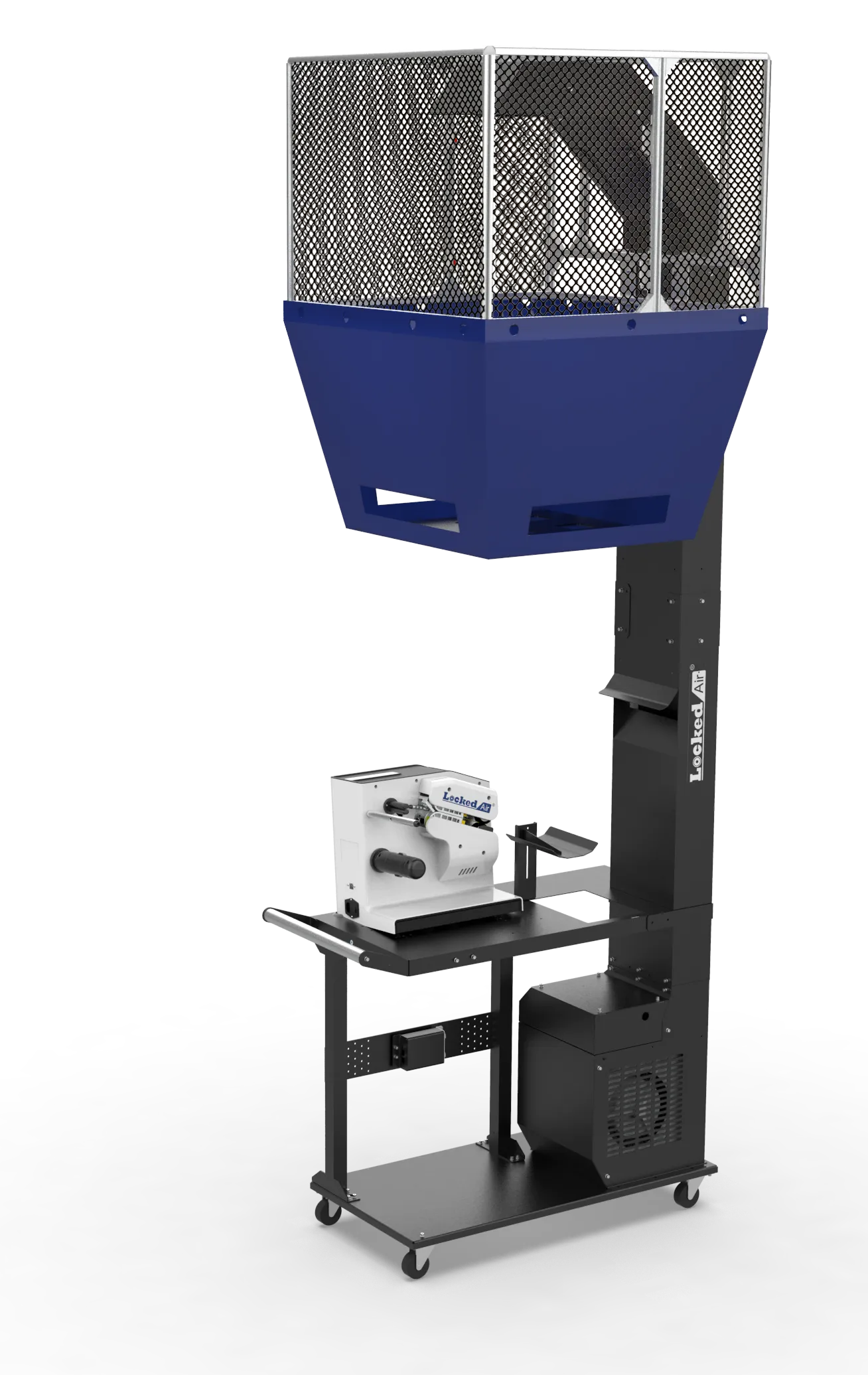

統合されたエアバッグ配送システム、コンパクトな構造、効率的で便利
Model | ET 1007 |
Cushion Type | Air Tube、Air Bubble、Air Pillow |
Film Thickness | 13um~35um |
Film Type | All |
Air pillow Film Width | 400mm |
Options | -SS(double sensors) |
Dimension(L*W*H) | 800*840*2800 |
Weight | 28Kg(Main module)、15Kg(Hopper Assembly) |
Auto Positional Stop | Top+Bottom |
Film anti-drop Protect | Yes |
Palletizing | 2 sets/pallet |
Pallet Size | 1100*1100mm |
Certification | N.A. |
Warranty | 2 years (Work with LockedAir sys) |
For more information refer to engineering drawing | |
